The Mechanics of Memory Corruption: From CPU Execution Hijacking to Managed Runtime Escapes

Memory corruption is not a relic of older software. It remains a major source of high-impact vulnerabilities, particularly in web browsers, operating system kernels, native parsing engines, and low-level infrastructure that still rely on memory-unsafe languages.

Crucially, modern exploitation is no longer as simple as "overflow a buffer, jump to shellcode, pop a root shell." Modern operating systems deploy defense-in-depth mitigations—non-executable memory pages, address space layout randomization, stack canaries, control-flow integrity, and restricted kernel sandboxes. As a result, contemporary exploitation requires chaining smaller, surgical primitives: corrupt memory, leak a pointer to defeat address randomization, gain an arbitrary write or indirect branch primitive, bypass system mitigations, and only then traverse security boundaries.

At the same time, software engineering has shifted heavily toward managed, garbage-collected environments like JavaScript, TypeScript, and Python. While this eliminates direct pointer bugs at the application layer, it does not remove native code from the execution stack. Runtimes like Node.js load native C/C++ addons, and popular npm packages depend directly on native shared libraries for image processing, compression, cryptography, and database drivers.

This analysis traces that entire path: from the physical breakdown of bytes inside a native process, through CPU control-flow hijacking techniques, to the boundary where high-level web applications quietly inherit unmanaged native memory risks.

Scope: This is an educational, systems-level architecture breakdown. Exploit code snippets are intentionally simplified to demonstrate security primitives and boundary failure modes rather than production exploits.

Contents

1. The Low-Level Primitives: How Memory Breaks
2. Hijacking the CPU: From Stack Smashing to ROP
3. The Failure of Composition: A Realistic Vulnerability Walkthrough
4. The High-Level Runtime Illusion: Native Realities in the MERN Stack
5. Strategic Defense & Triage: Where to Invest
6. Conclusion
7. References

1. The Low-Level Primitives: How Memory Breaks

At the hardware level, the CPU does not recognize whether a byte represents a username, a pointer address, an integer, or an instruction. It simply executes instructions that load, store, compare, and branch over memory offsets. Software invariants alone determine what those bytes mean.

On 64-bit Linux (x86-64 using standard 48-bit canonical addressing), user-space virtual memory occupies a 128-Terabyte address window ranging from 0x000000000000 to 0x00007FFFFFFFFFFF:

+-------------------------------------------------------------------+ 0x7FFFFFFFFFFF
| Kernel Space (Inaccessible to User Space Ring 3)                  |
+-------------------------------------------------------------------+ 0x7FFFFFFFF000
| [Main Thread Stack]  (Grows downward toward lower memory)          |
|   |                                                               |
|   v                                                               |
+-------------------------------------------------------------------+
|                                                                   |
|   Shared Libraries, mmap() regions, thread stacks                 |
|   (e.g., libc.so, libvips.so mapped around ~0x7FFF... by ASLR)    |
|                                                                   |
+-------------------------------------------------------------------+
|                                                                   |
|   Unmapped Virtual Address Space (Tens of Terabytes on 64-bit)    |
|                                                                   |
+-------------------------------------------------------------------+
|   ^                                                               |
|   |                                                               |
| [Heap] (Grows upward via brk/sbrk and mmap)                       |
+-------------------------------------------------------------------+
| BSS (Uninitialized Globals)                                       |
+-------------------------------------------------------------------+
| Data (Initialized Globals)                                        |
+-------------------------------------------------------------------+
| Text / Code (.text segment of PIE binary, base ~0x5555...)        |
+-------------------------------------------------------------------+ 0x000000000000
| Guard Page (NULL Pointer Trap, 64KB unmapped)                      |
+-------------------------------------------------------------------+

Memory corruption occurs when an operation violates an architectural invariant within this address space. The four mechanics below produce fundamentally different primitives:

1.1 Stack and Heap Buffer Overflows

A stack frame stores local variables and, depending on the compiler and ABI, saved registers and return metadata. While traditional frame pointers (%rbp) may be omitted by optimization flags (-fomit-frame-pointer), local buffers always write upward toward higher memory addresses.

char name[32];

/* Unsafe if input_length exceeds 32 bytes */
memcpy(name, input, input_length);

If input_length > sizeof(name), the write crosses the object boundary. Depending on compiler variable ordering, stack alignment, and canary placement, the write may corrupt adjacent locals, security-sensitive flags, or return addresses.

On the heap, an overflow corrupts neighboring allocations or allocator metadata (such as chunk headers, size flags, and bins in ptmalloc). Modern allocators incorporate hardening checks (e.g., safe unlinking, tcache count validation), making modern heap exploitation rely heavily on corrupting application data structures—such as function callback pointers or C++ virtual method tables (vtables)—rather than raw allocator metadata.

Core Rule: A buffer overflow is a bounds violation first. What it becomes an exploit depends entirely on what lies immediately adjacent in memory and what the attacker can influence.

1.2 Use-After-Free (UAF)

A Use-After-Free occurs when dynamically allocated memory is released via free(), but a pointer referencing that memory remains accessible:

struct Context *ctx = malloc(sizeof(struct Context));
// ... operations ...
free(ctx);
// ctx is now a dangling pointer referencing unreserved heap memory

If the allocator later reassigns that same memory chunk to a different object, the stale pointer can read or manipulate attacker-influenced bytes under the guise of the original type:

valid object
    |
    v
  free()
    |
    v
 dangling pointer
    |
    +----> memory reused by another object
                    |
                    v
          stale access interprets new bytes

Attackers orchestrate this through heap grooming (heap feng shui): executing precise allocation and deallocation sequences to place malicious payloads into chunk addresses still referenced by dangling pointers.

1.3 Integer Overflows Leading to Undersized Allocations

In C and C++, arithmetic on unsigned integers wraps modulo $2^N$. Signed integer overflow, by contrast, is undefined behavior (UB). When untrusted inputs calculate buffer sizes, integer wrapping can decouple allocation size from copy length:

#include
#include

uint32_t count = get_untrusted_count();    // Attacker input: 0x40000001
uint32_t item_size = sizeof(struct Item);  // 4 bytes

// 0x40000001 * 4 = 0x100000004
// In 32-bit registers, the 33rd bit drops: wraps to 4 bytes!
uint32_t total_size = count * item_size;

void *buffer = malloc(total_size); // Allocates only 4 bytes!

for (uint32_t i = 0; i < count; i++) {
    ((struct Item *)buffer)[i] = get_item(i); // Massive out-of-bounds heap write!
}

The arithmetic bug itself writes no memory; it forces the allocator to provide an undersized buffer, transforming a subsequent loop into a massive heap overflow.

1.4 Out-of-Bounds (OOB) Read and Write

An OOB access occurs when a program reads or writes outside an allocated boundary using an unchecked, non-linear index:

int64_t untrusted_index = get_untrusted_index();
uint64_t leaked_secret = secret_array[untrusted_index];

An OOB Read serves as an information disclosure primitive, leaking runtime pointers to defeat ASLR. An OOB Write provides an arbitrary or semi-arbitrary write primitive, corrupting targeted state without crashing intermediate stack or heap structures.

2. Hijacking the CPU: From Stack Smashing to ROP

The Classical Stack Exploit

Historically, exploitation followed a direct injection sequence:

1. Overflow a stack buffer.
2. Overwrite the Saved Frame Pointer (%rbp) and Saved Return Address (saved %rip).
3. Point the return address back to the stack buffer.
4. Fill the buffer with executable machine code (shellcode).
5. When the function executes ret, the CPU loads the buffer address into %rip and executes the shellcode directly.

Modern Mitigations: DEP/NX and ASLR

Modern platforms neutralize direct code injection through complementary hardware and kernel controls:

• Data Execution Prevention (DEP / NX): Hardware Memory Management Units (MMUs) enforce a $W \oplus X$ (Write XOR Execute) policy. Writable data pages (stack, heap) are marked non-executable. Jumping into the stack triggers an immediate hardware page fault (SIGSEGV).
• Address Space Layout Randomization (ASLR): The kernel randomizes the base memory offsets of the stack, heap, and shared libraries (libc.so) on every program run, preventing reliance on hardcoded addresses.

The Bypass: Return-Oriented Programming (ROP)

Attackers bypass DEP/NX by reusing executable code already resident in memory (such as .text sections or dynamic libraries). A gadget is a short sequence of instructions ending in a return opcode (ret, 0xC3):

pop %rdi ; ret

Under the System V AMD64 ABI, register %rdi stores the first function argument. This gadget performs two sequential operations:

1. pop %rdi: Pops the 8-byte QWORD currently pointed to by %rsp into %rdi, incrementing %rsp by 8.
2. ret: Pops the next QWORD from the stack into %rip, transferring execution to the next target and incrementing %rsp by 8.

Because pop and ret increment %rsp, ROP execution traverses the synthetic stack frame upward toward higher memory addresses:

Stack Pointer (%rsp) Movement During ROP Chain Execution:

Higher Addresses
       ^
       |   [ 0x00007FFFF7A5F100 ] -> Target Function: Address of system() in libc
       |   [ 0x00007FFFF7B86E40 ] -> Argument Value: Pointer to "/bin/sh" (for %rdi)
       |   [ 0x0000000000401234 ] -> Gadget 1 Address: pop %rdi ; ret
       |   [ Saved Frame Pointer] -> Overwritten %rbp
       |   [ Local Buffer Space ] -> Overflow starts here
Lower Addresses

Step 1: Function returns. CPU executes 'ret', popping Gadget 1 into %rip.
        %rsp advances (+8) to point to the "/bin/sh" string pointer.
Step 2: Gadget 1 executes 'pop %rdi'. Register %rdi now points to "/bin/sh".
        %rsp advances (+8) to point to system().
Step 3: Gadget 1 executes 'ret', popping system() into %rip.
        system("/bin/sh") executes cleanly inside executable library space!

The ASLR Reality: Because ASLR randomizes library bases, modern ROP chains cannot rely on hardcoded pointers. Reliable exploits require an Information Disclosure (pointer leak) to compute the dynamic base address of libc before dispatching the payload.

3. The Failure of Composition: A Realistic Vulnerability Walkthrough

Production vulnerabilities rarely stem from a single reckless line of code. They typically emerge from a failure of composition: independent components making assumptions that are safe in isolation, but catastrophic when combined.

The Vulnerable Architecture

The example below illustrates how 32-bit arithmetic validation, C struct member layout, and dynamic memory copies fail together:

#include
#include
#include
#include

#define MAX_PAYLOAD_SIZE (1024 * 1024)  /* 1 MiB validation ceiling */

struct MessageRecord {
    uint32_t record_type;
    uint32_t data_len;
};

/*
 * C struct layout guarantees sequential memory ordering:
 * buffer occupies offsets 0 to 63; is_admin sits immediately at offset 64.
 */
struct SessionContext {
    char buffer[64];
    uint32_t is_admin;  /* 0 = unprivileged, nonzero = privileged */
};

static int validate_payload_boundary(uint32_t count, uint32_t size_per_record) {
    /* BUG: 32-bit unsigned multiplication wraps modulo 2^32 */
    uint32_t total = count * size_per_record;

    if (total > MAX_PAYLOAD_SIZE) {
        return 0;  /* Reject */
    }
    return 1;      /* Accept */
}

static void parse_network_transaction(const unsigned char *stream, uint32_t record_count) {
    struct SessionContext ctx;
    ctx.is_admin = 0; // Default: unprivileged

    const uint32_t record_size = sizeof(struct MessageRecord);  /* 8 bytes */

    if (!validate_payload_boundary(record_count, record_size)) {
        puts("[-] Payload exceeds memory limits. Terminating.");
        return;
    }

    /* Arithmetic wraps identically: 0x2000000A * 8 = 0x100000050 -> 80 bytes */
    uint32_t copy_bytes = record_count * record_size;

    printf("[+] Processing %u bytes into context buffer...\n", copy_bytes);

    /*
     * Buffer is 64 bytes. We copy 80 bytes into it:
     * - Bytes 0..63 fill ctx.buffer.
     * - Bytes 64..67 overwrite ctx.is_admin with 0x00000001!
     * - Bytes 68..79 spill into adjacent frame padding.
     */
    memcpy(ctx.buffer, stream, copy_bytes);

    if (ctx.is_admin != 0) {
        printf("[!] Security state corrupted: is_admin = 0x%08X (ADMIN ESCALATION)\n", ctx.is_admin);
    } else {
        puts("[-] Access restricted: Normal User.");
    }
}

int main(void) {
    unsigned char network_data[80];

    /* Fill buffer with padding bytes */
    memset(network_data, 'A', 64);

    /* Forge the security-critical flag as 1 */
    uint32_t forged_admin = 1;
    memcpy(network_data + 64, &forged_admin, sizeof(forged_admin));

    /* Remaining bytes illustrate overflow spilling beyond the struct */
    memset(network_data + 68, 0, 12);

    /* 0x2000000A * 8 = 0x100000050 -> Truncates to 80 */
    const uint32_t malicious_count = 0x2000000A;

    parse_network_transaction(network_data, malicious_count);
    return 0;
}

Deconstructing the Breakdown

1. Validation Wrap-Around: 0x2000000A × 8 = 0x100000050. In 32-bit arithmetic, the 33rd bit is dropped, leaving 80. Because 80 ≤ 1048576, the validation check passes.
2. Internal State Corruption: ctx.buffer begins at offset 0x00; ctx.is_admin sits at offset 0x40 (64). The forward memcpy writes 80 bytes, cleanly overwriting is_admin with 1.
3. Bypassing Stack Canaries: Stack canaries (-fstack-protector) guard the boundary between local variables and the saved frame pointer/return address. Because this corruption is confined to internal struct variables, the exploit achieves full privilege escalation without modifying control-flow metadata or triggering canary tripwires.

Catching the Bug with Sanitizers

Compiling with AddressSanitizer (ASan) and UndefinedBehaviorSanitizer (UBSan) catches these spatial boundary violations during unit testing:

gcc -g -O0 -fsanitize=address,undefined -fno-omit-frame-pointer demo.c -o demo
./demo

AddressSanitizer detects that the 80-byte copy extends beyond the stack allocation of the SessionContext struct and halts execution before corrupted state is processed:

=================================================================
==54210==ERROR: AddressSanitizer: stack-buffer-overflow on address 0x7ffd9a5b3a40
WRITE of size 80 at 0x7ffd9a5b3a40 thread T0
    #0 0x7f119024c8a6 in __interceptor_memcpy (/lib/x86_64-linux-gnu/libasan.so.6+0x3a8a6)
    #1 0x55d7870a22c5 in parse_network_transaction demo.c:50
    #2 0x55d7870a23dc in main demo.c:66
Address 0x7ffd9a5b3a40 is located in stack of thread T0 at offset 96 in frame
    #0 0x55d7870a2149 in parse_network_transaction demo.c:23

  This frame has 1 object(s):
    [32, 100) 'ctx' <== Memory access at offset 96 overflows variable boundary
=================================================================

4. The High-Level Runtime Illusion: Native Realities in the MERN Stack

Developers writing in high-level managed environments often assume memory corruption is entirely irrelevant to their threat model. While V8 manages memory safety within JavaScript execution, Node.js is a C++ application that relies on native shared libraries ([1]).

There is no automatic process isolation around native addons. When Node.js loads a native addon via N-API, that native binary runs in the exact same virtual memory space as the V8 engine itself.

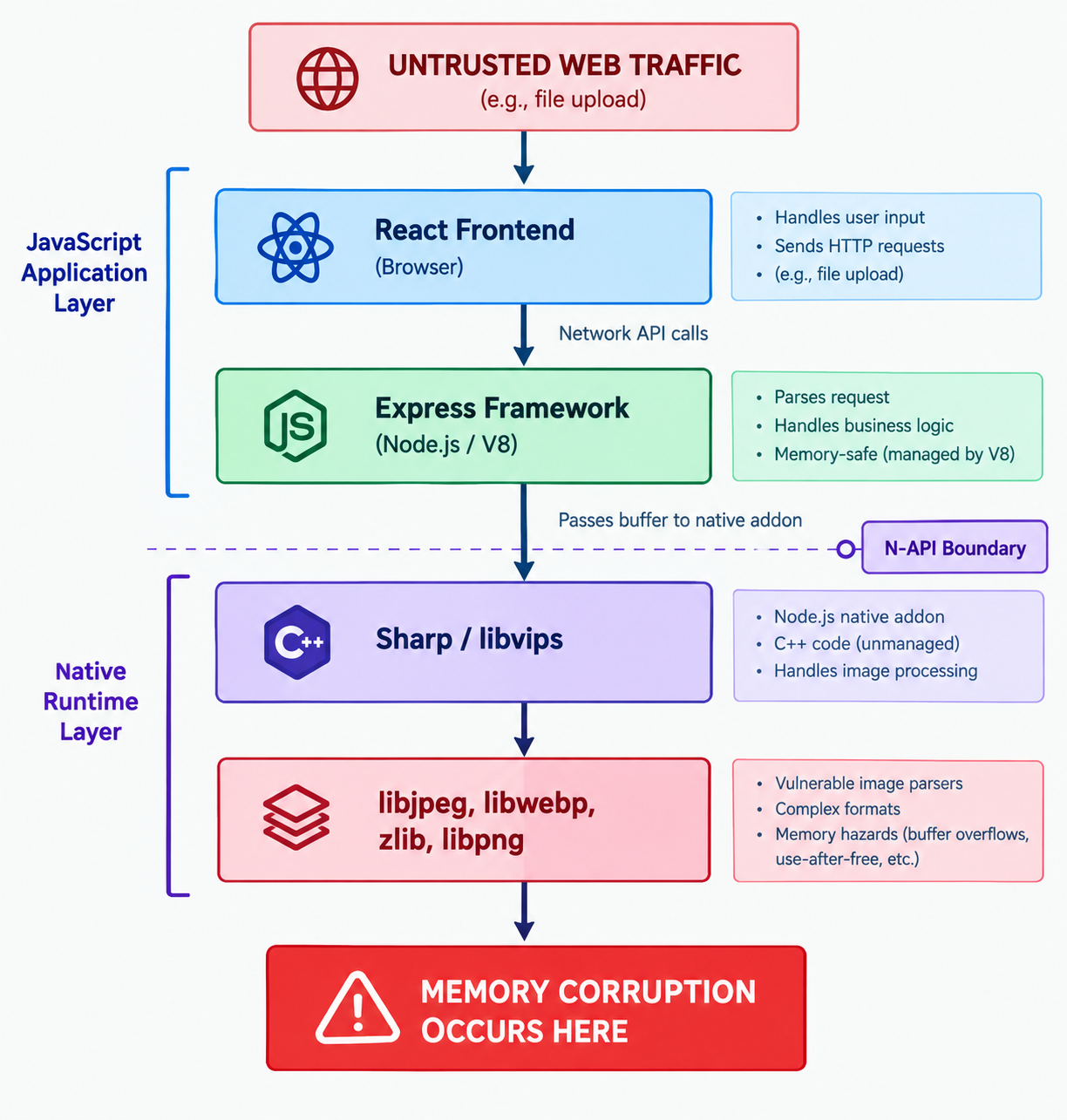

Real-World Case Study: Image Processing Pipelines

Consider an Express service accepting profile avatars:

import express from "express";
import multer from "multer";
import sharp from "sharp";

const app = express();
const upload = multer({ limits: { fileSize: 5 * 1024 * 1024 } }); // 5 MiB cap

app.post("/api/v1/avatar", upload.single("avatar"), async (req, res) => {
  try {
    if (!req.file) {
      return res.status(400).json({ error: "Missing upload file" });
    }

    const thumbnail = await sharp(req.file.buffer)
      .resize(128, 128)
      .webp({ quality: 80 })
      .toBuffer();

    return res.status(200).json({ status: "uploaded", bytes: thumbnail.length });
  } catch (err) {
    return res.status(500).json({ error: "Image processing failure" });
  }
});

To the application developer, this code appears safe: file size is capped at 5MB, processing is wrapped in an asynchronous try/catch block, and buffers are managed by JavaScript. However, sharp is a native wrapper around libvips, which relies on native decoders like libwebp.

In late 2023, CVE-2023-4863 revealed a critical heap buffer overflow in libwebp ([4], [5]). When parsing lossless WebP images, malformed Huffman lookup tables caused an out-of-bounds heap write. A malicious image uploaded to this Express endpoint triggers heap corruption directly within the Node.js process space.

When low-level memory corruption occurs in native dependencies, a JavaScript try/catch block cannot intercept it. The underlying process triggers a segmentation fault (SIGSEGV) and aborts immediately, resulting in Denial of Service (DoS) or arbitrary code execution.

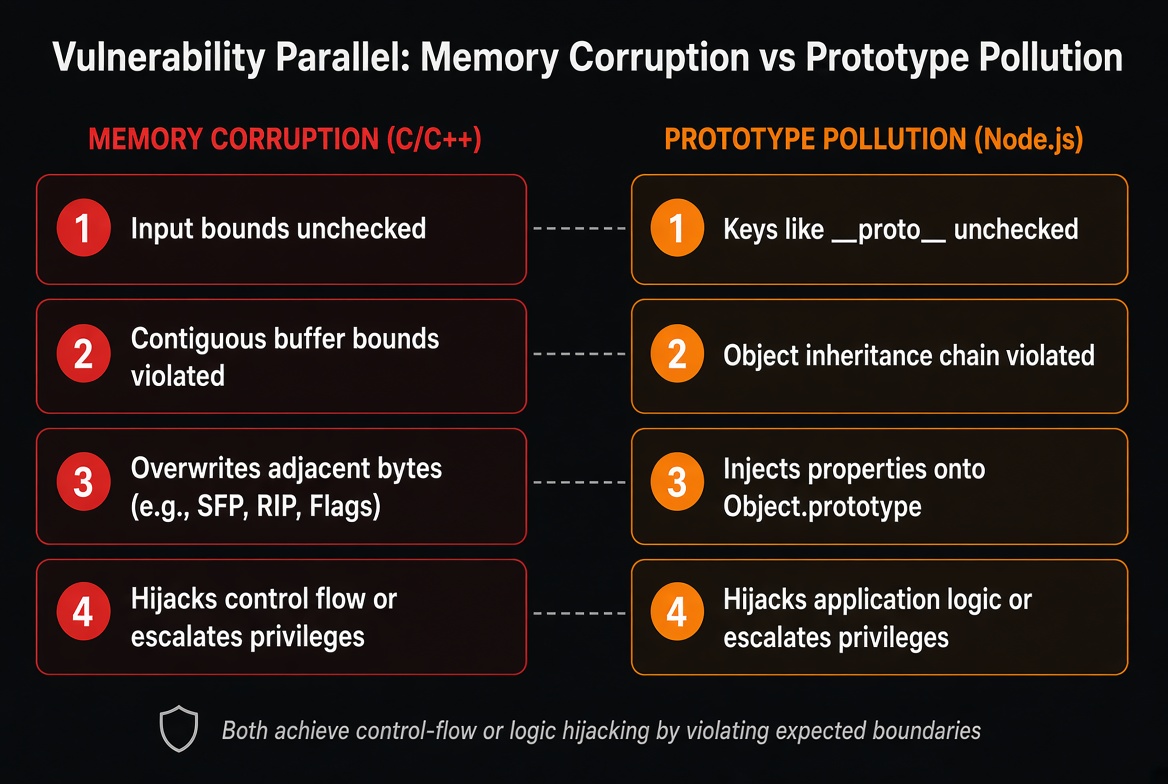

The High-Level Logical Analogue: Prototype Pollution

JavaScript applications avoid direct pointer operations, but they remain vulnerable to an equivalent form of state corruption: Prototype Pollution ([11]).

Where memory corruption overwrites adjacent physical bytes, prototype pollution injects properties onto base prototype objects that structure the application's runtime logic:

function deepMerge(target, source) {
  for (const key in source) {
    if (typeof source[key] === "object" && source[key] !== null) {
      if (!target[key]) target[key] = {};
      deepMerge(target[key], source[key]);
    } else {
      target[key] = source[key];
    }
  }
  return target;
}

// Simulated malicious JSON parsed from a request body
const payload = JSON.parse(`{
  "__proto__": {
    "isAdmin": true
  }
}`);

const config = {};
deepMerge(config, payload);

// Testing a completely unrelated, newly allocated object:
const user = {};
console.log(user.isAdmin); // Returns TRUE!

By injecting properties onto Object.prototype, every standard JavaScript object inherits the new attribute. If business logic evaluates if (user.isAdmin) without verifying that isAdmin is an own-property, an unprivileged user gains immediate administrative elevation.

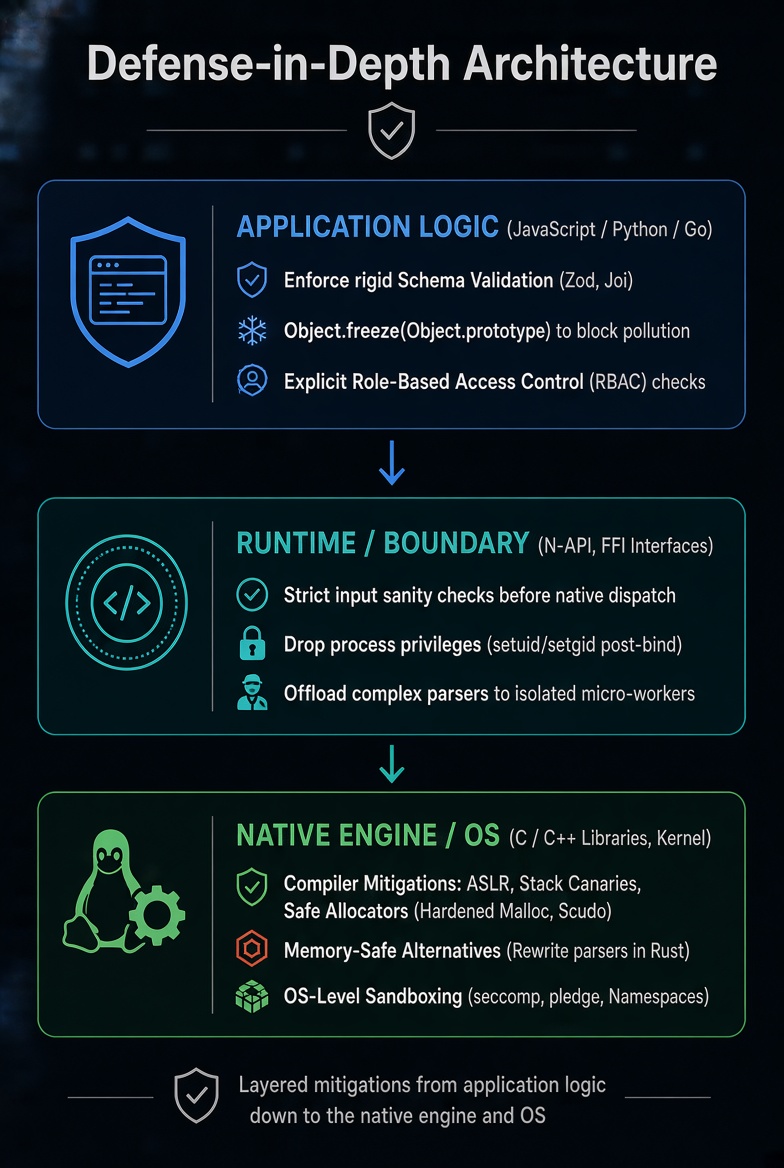

5. Strategic Defense & Triage: Where to Invest

Threat Modeling Matrix

Production Engineering Best Practices

5.1 Isolate Binary Parsing Workloads into Child Processes

Never parse complex, user-supplied binary formats (images, PDFs, media containers, archives) directly within your main web process. Offload parsing to dedicated worker processes rather than worker threads ([2], [3]):

                 Public API
                     |
                     v
              Node.js Web Process
                     |
                IPC / Queue
                     |
                     v
          Isolated Parser Process
                     |
          +----------+----------+
          |                     |
       Non-Root             Restricted
       Identity             Filesystem
          |                     |
          +----------+----------+
                     |
             Sandboxed Container
                     |
        seccomp + No Egress + Mem Limits

Node.js worker threads share memory; separate child processes do not. By isolating parsers into ephemeral child containers restricted by seccomp (disallowing network syscalls), an exploit of a native parser is trapped with zero network egress.

5.2 Shift Native Extensions to Memory-Safe Languages

When native performance is required, implement Node addons in Rust using NAPI-RS instead of C or C++. Rust's strict compile-time ownership, borrowing, and lifetime rules eliminate Use-After-Free and buffer overflows by design without introducing garbage collection latency.

5.3 Integrate Sanitizers into CI/CD for Native Modules

If your organization maintains custom C/C++ native addons, compile test pipelines with AddressSanitizer and UndefinedBehaviorSanitizer:

export CFLAGS="-fsanitize=address,undefined -fno-omit-frame-pointer"
export CXXFLAGS="-fsanitize=address,undefined -fno-omit-frame-pointer"
npm test

Sanitizers flag boundary violations, dangling pointers, and signed integer errors during continuous integration before code reaches production servers.

5.4 Harden JavaScript Against Prototype Tampering

Rather than relying on Object.freeze(Object.prototype)—which often breaks third-party npm packages—adopt defensible runtime practices ([11]):

• Use Prototype-Less Objects: Initialize lookup tables using Object.create(null) or JavaScript Map instances to ensure incoming keys cannot navigate the prototype chain.
• Enforce Own-Property Checks: Guard security-critical authorizations using Object.hasOwn(user, 'isAdmin') rather than simple property lookup.
• Validate Schemas at the Boundary: Use libraries like Zod or TypeBox to validate the exact shape of incoming JSON payloads before passing data into object operations.

6. Conclusion

Memory corruption is not an obsolete vulnerability class confined to legacy systems. Historical telemetry confirms its dominance: Microsoft has historically attributed roughly 70% of its patched CVEs to memory safety issues ([6]), Chromium reports that ~70% of its critical flaws are memory safety bugs ([7]), and Google Threat Intelligence's 2025 review identified memory corruption in approximately 35% of all in-the-wild zero-days analyzed ([8]).

Defending modern systems requires recognizing that memory safety is an end-to-end systems property, not merely a high-level programming language feature:

Memory Corruption Invariant Violation
      |
      +--> Internal State Corruption (Privilege Escalation)
      +--> Information Disclosure (ASLR Pointer Leak)
      +--> Arbitrary / Targeted Write
      +--> Control-Flow Hijack (ROP Chain Execution)
      +--> Mitigation Bypass -> Full Host Compromise

A web application can be written entirely in TypeScript while remaining critically exposed to memory corruption in the native parsers running beneath the runtime. Security is maintained only when invariants hold across every tier of the stack: from defensive, schema-validated web endpoints down through native addon interfaces to host operating system memory pages.

7. References

1. Node.js Documentation: C++ Addons & Node-API
2. Node.js Documentation: Worker Threads
3. Node.js Documentation: Child Process
4. Sharp Advisory: libwebp / CVE-2023-4863
5. NVD: CVE-2023-4863 Detail
6. MSRC Blog: A Proactive Approach to More Secure Code
7. Chromium Security: Memory Safety
8. Google Threat Intelligence: 2025 Zero-Days in Review
9. Google Project Zero: In-the-Wild 0-Day Review
10. CISA: The Case for Memory Safe Roadmaps
11. MDN Web Docs: JavaScript Prototype Pollution
12. MDN Web Docs: Inheritance and the Prototype Chain
